Helix HLT3500 Club Connect Lateral Trainer
$5,999.00
Top-of-the-line commercial lateral trainer built for 24/7 use. 20 resistance levels, Android touchscreen console with built-in classes, and Helix’s patented side-to-side motion. Rated to 350 lbs.
SATISFACTION GUARANTEE
FREE SHIPPING
RETURNS
PROTECTION PLAN
Request A Quote
Product Description
The Helix HLT3500 Club Connect is the top-of-the-line lateral trainer in the Helix range, built to withstand 24/7/365 commercial use. Like every Helix model it moves you side to side rather than front-to-back, working the body through all three planes of motion and recruiting muscles a conventional elliptical ignores — the obliques, inner thighs and outer thighs.

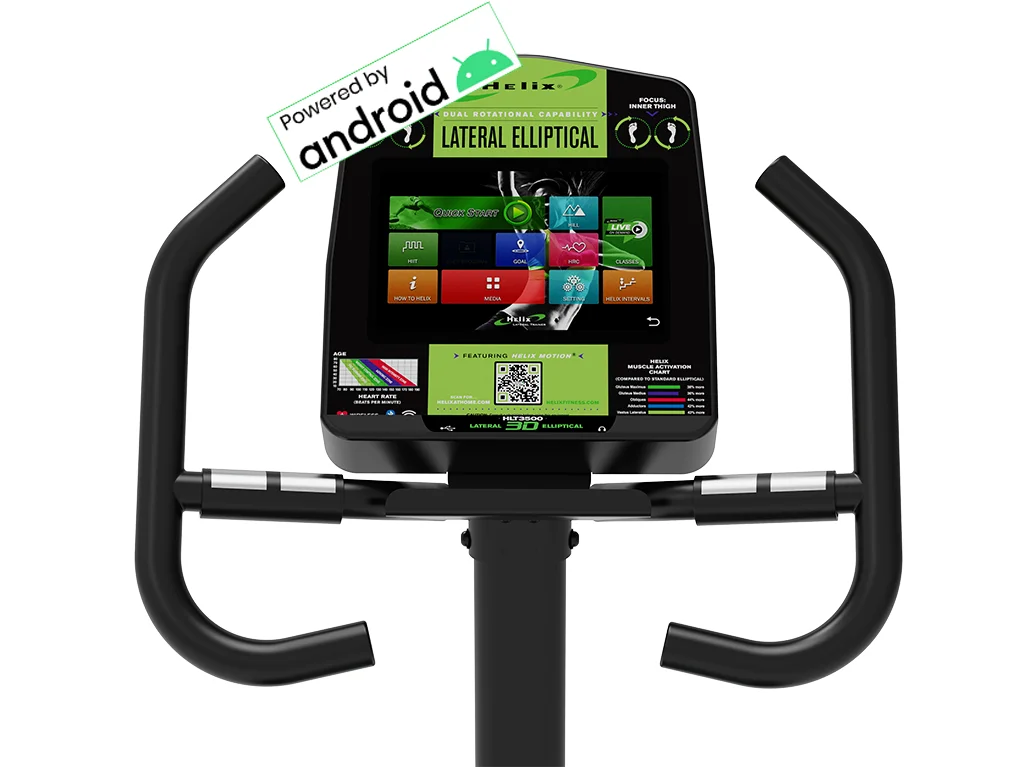

For 2026 it arrives in a new Night Black Matte finish with an upgraded, fast Android touchscreen console: built-in Wi-Fi and Bluetooth, web browsing, phone screen mirroring, integrated “Brain Games” training apps, and live or on-demand Helix classes streamed directly on the console — no phone or tablet needed. It offers 20 levels of electronically controlled magnetic resistance and 12 programs including HIIT and intervals.
Rated for users up to 350 lbs and suitable for both commercial and residential settings, the HLT3500 occupies a compact 42 x 42.5-inch footprint.
Specifications
| Resistance | 20 electronically controlled levels |
| Resistance type | Generator/electro-magnetic (325 watts total) |
| Console | TFT interactive Android touchscreen |
| Programs | 12 (including HIIT & intervals) |
| Feedback | Calories, RPM, distance, resistance level, heart rate, METS, watts, time; workout history & personal data saving |
| Connectivity | Wi-Fi, Bluetooth, web browsing, live & on-demand classes on the console |
| Heart rate | Polar compatible |
| Max user weight | 350 lbs (159 kg) |
| Duty rating | Built for 24/7/365 commercial use |
| Power | 120 VAC, 50/60 Hz (plug-in) |
| Unit weight | 225 lbs (102 kg) |
| Assembled footprint | 42 in x 42.5 in (108 cm x 108 cm) |
| Packaging | 42.5 in x 42.5 in x 25 in |
| Finish | Night Black Matte |
| Setting | Commercial or residential |
| Warranty | 3 years parts, 1 year labor (owner registration required) |
Additional information
| Weight | 225 lbs |
|---|---|
| Dimensions | 42 × 42.5 in |
