PRE-ORDER The 2024 Club Connect – Ships for FREE* in 30 days.

The world’s most effective cardio in the top-of-the-line model featuring an Android®- powered state of the art console with built in Wi-Fi, Bluetooth, web browsing and an integrated Helix @ Home app to take live or on demand classes. It is built for full- commercial settings.

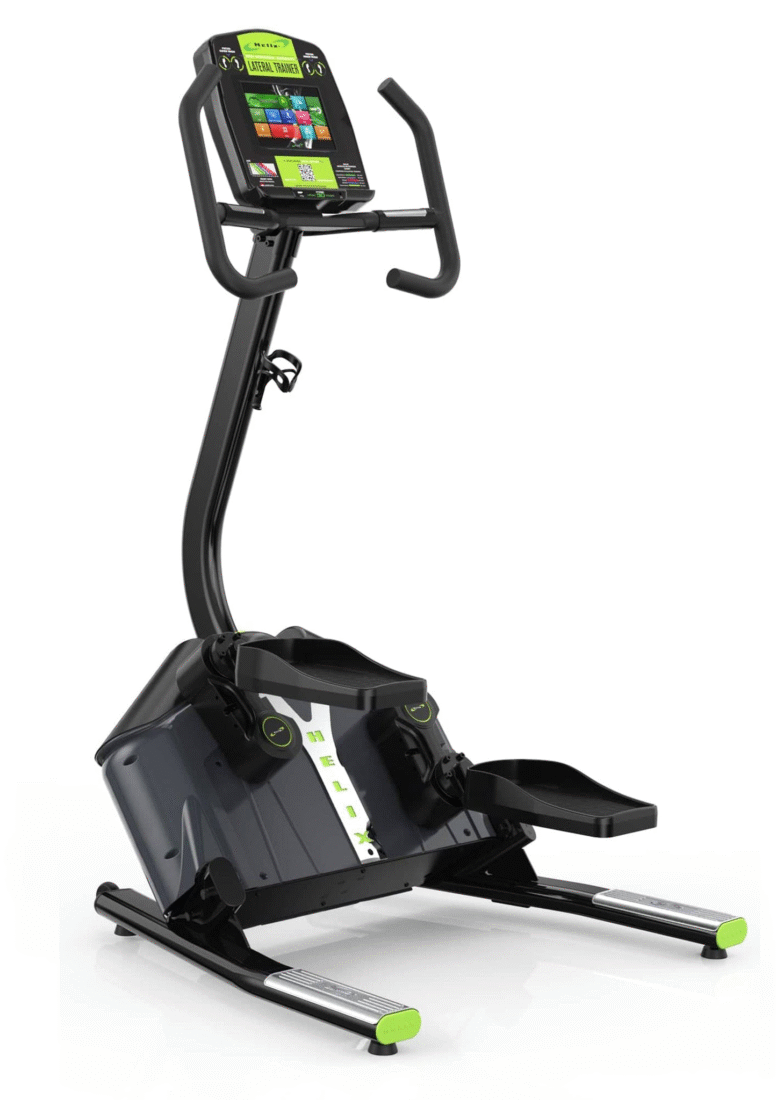

Like all Helix models, the HLT3500-3D is clinically shown to provide increased muscle activation and fat burning.* It works the body in all three planes of human motion and targets the muscles that traditional cardio ignores, such as the obliques (55% more activation), the inner thighs (42% more activation ) and the outer thighs (50% more activation).

*continental USA only

Who is this machine right for?

• Gyms open 24/7
• Those who want an upgraded computer with embedded smart tablet with built-in wiFi and option for live or on-demand classes directly on the console
• Those who weigh up to 350 lbs
• Those looking for the maximum resistance possible
• Those looking for a top-of-the-line home use machine that will receive heavier use

How does this machine compare to other models?

• It is designed for the heaviest commercial use, up to 24 hours a day.
• Its console functions like an independent “smart” tablet
• Users may take classes directly from the console—no phone or tablet needed
• It features 20 levels of resistance and 12 programs, including HIIT and intervals

Specifications and Computer Features:
Resistance levels: 20, electronically controlled


Resistance type and method: Generator Magnetic, Electro-Magnetic (325 watts total resistance)


Computer display: TFT interactive display


Feedback: Real time calories, RPM, distance, resistance level, heart rate, level, METS, watts and time; Features workout history tracking and personal data saving.


Smart tablet: Computer features integrated wi-fi, Bluetooth, web browsing and ability to take live and on demand classes


Polar compatible: Yes


Max user weight: 350 lbs/159 kg


Power requirements: Plug in 120 VAC 50/60 Hz


Unit weight: 225 lbs/102kg


Assembled footprint: 42 inches x 42.5 inches (108 cm x 108 cm


Packaging dimensions: 42.5 inches x 42.5 inches x 25 inches (108 cm x 108 cm x 61.5 cm)


Setting: for commercial or residential use


Warranty: 3years, parts, 1 year labor


(owner must register with Helix)



Compare All Upright Models

Features and Specs
Clinical Research
*2011 clinical study conducted by the Human Performance Research Lab, University of Tampa

**2016 clinical study conducted by the Human Biomechanics and Physiology Laboratory, High Point University
Product Manual Download
