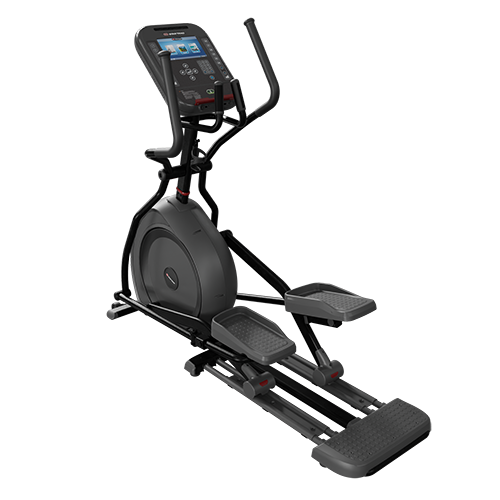

The Star Trac 4 Series Cross Trainer brings the look and performance of a full-commercial elliptical to hospitality and multi-housing fitness centers. Premium full-color flat-panel displays, quick-select adjustment keys, and an optional personal viewing screen give smaller facilities a refined cardio solution without a full-commercial footprint.

A front-drive alternator resistance system pairs with a 20″ fixed stride and a low 11″ step-up height with step-up assist for easy, inclusive access. Telemetry and contact heart rate, a bottle holder, USB port, and pre-wiring for the optional PVS entertainment system come built in.

Choose from a 15″ OpenHub capacitive touchscreen (with ATSC tuner), a 10″ capacitive touchscreen, or a full-color 10″ LCD console to match each facility’s needs.

Key Features

• Full-commercial styling in a compact, hospitality-friendly footprint
• 20″ fixed stride with low 11″ step-up height and step-up assist
• Front-drive alternator resistance system
• Console choices: 15″ OpenHub touch, 10″ touch, or 10″ LCD
• Telemetry and contact heart rate; quick-select adjustment keys
• Bottle holder, USB port, and pre-wired for optional PVS entertainment

Specifications

• Console: Full-color 10″ LCD, 10″ capacitive touch, or 15″ OpenHub touch
• Stride Type / Length: Fixed, 20″ (51 cm)
• Step-Up Height: 11″ (28 cm)
• Drive System: Front drive
• Resistance System: Alternator
• Heart Rate: Telemetry & contact HR
• Max User Weight: 450 lbs (204 kg)
• Additional Features: Step-up assist; bottle holder; USB port; pre-wired for PVS
• Frame: Powder-coated steel; 60 Black standard (custom frame colors available with paint approval)
• Assembled Dimensions: 76″ L x 30″ W x 64″ H (193 x 76 x 163 cm)
• Product Weight: 273 lbs (124 kg)
• Power: LCD self-generating; touchscreen & PVS options require 12V/5A supply
• Models / SKUs: 9-4080-4CT-15-ATSC-60BLK (15″ Touch w/ Tuner) · 9-4080-4CT-10-TS-60BLK (10″ Touch) · 9-4080-4CT-10IN-60BLK (10″ LCD)

Download the Star Trac 4CT Cross Trainer product sheet (PDF)
