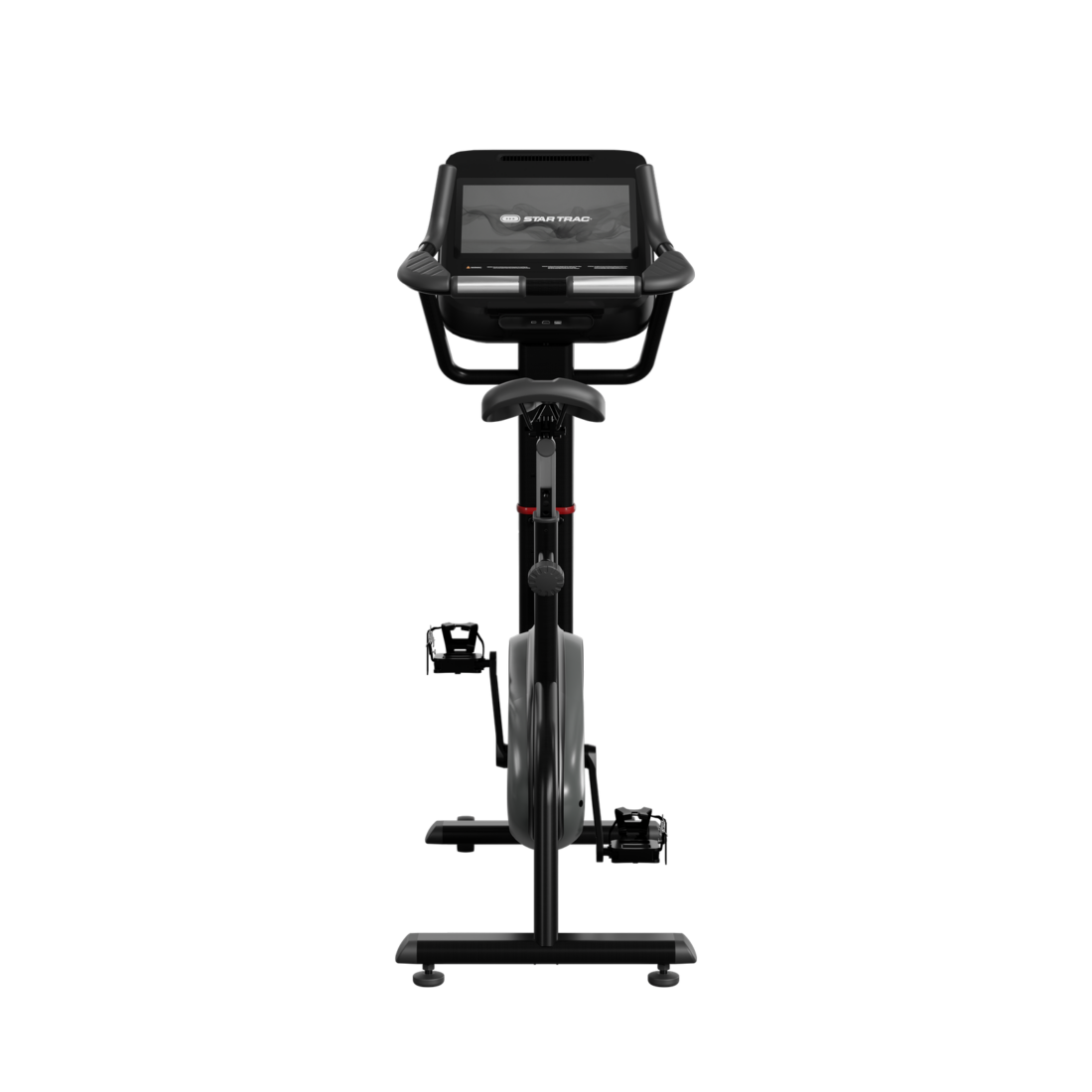

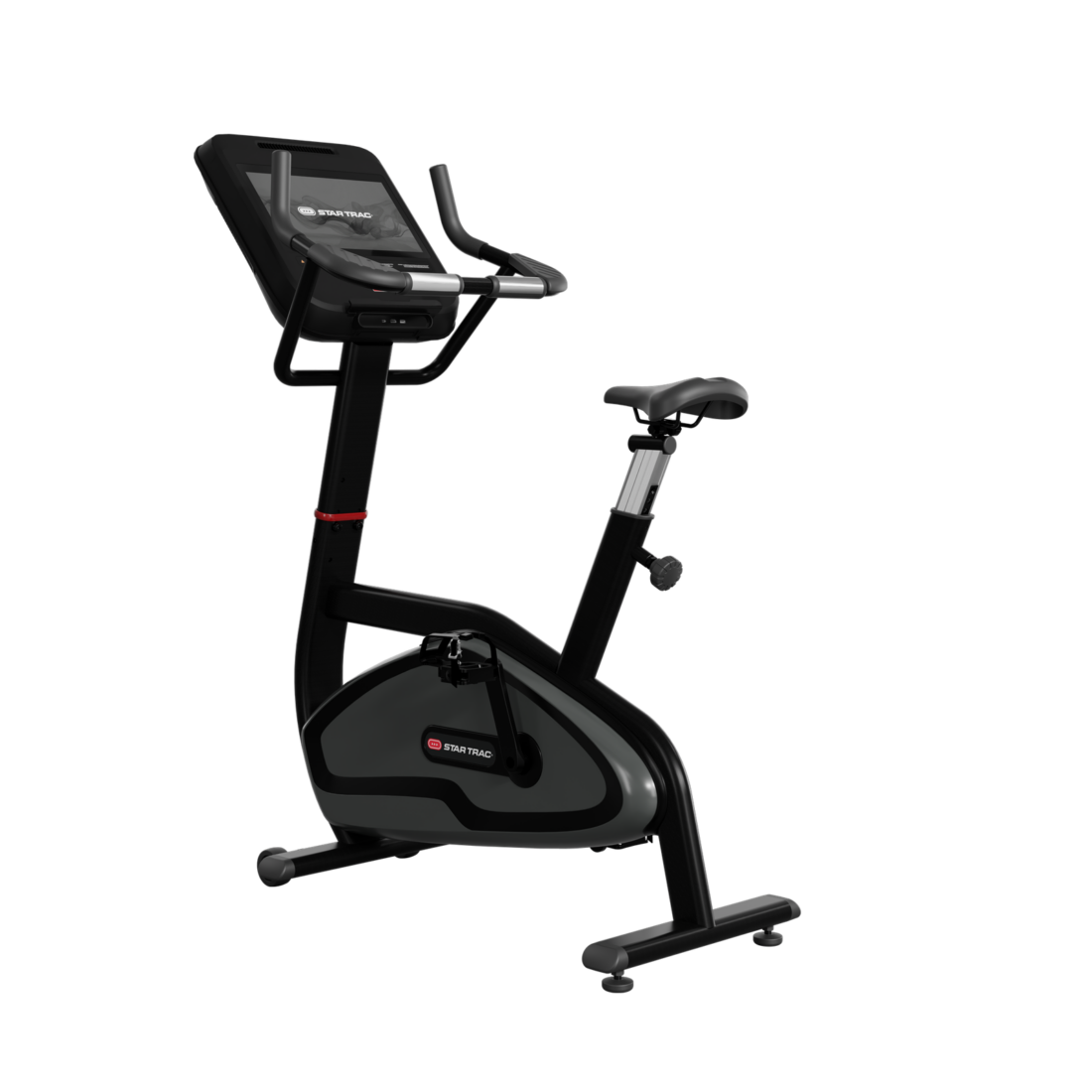

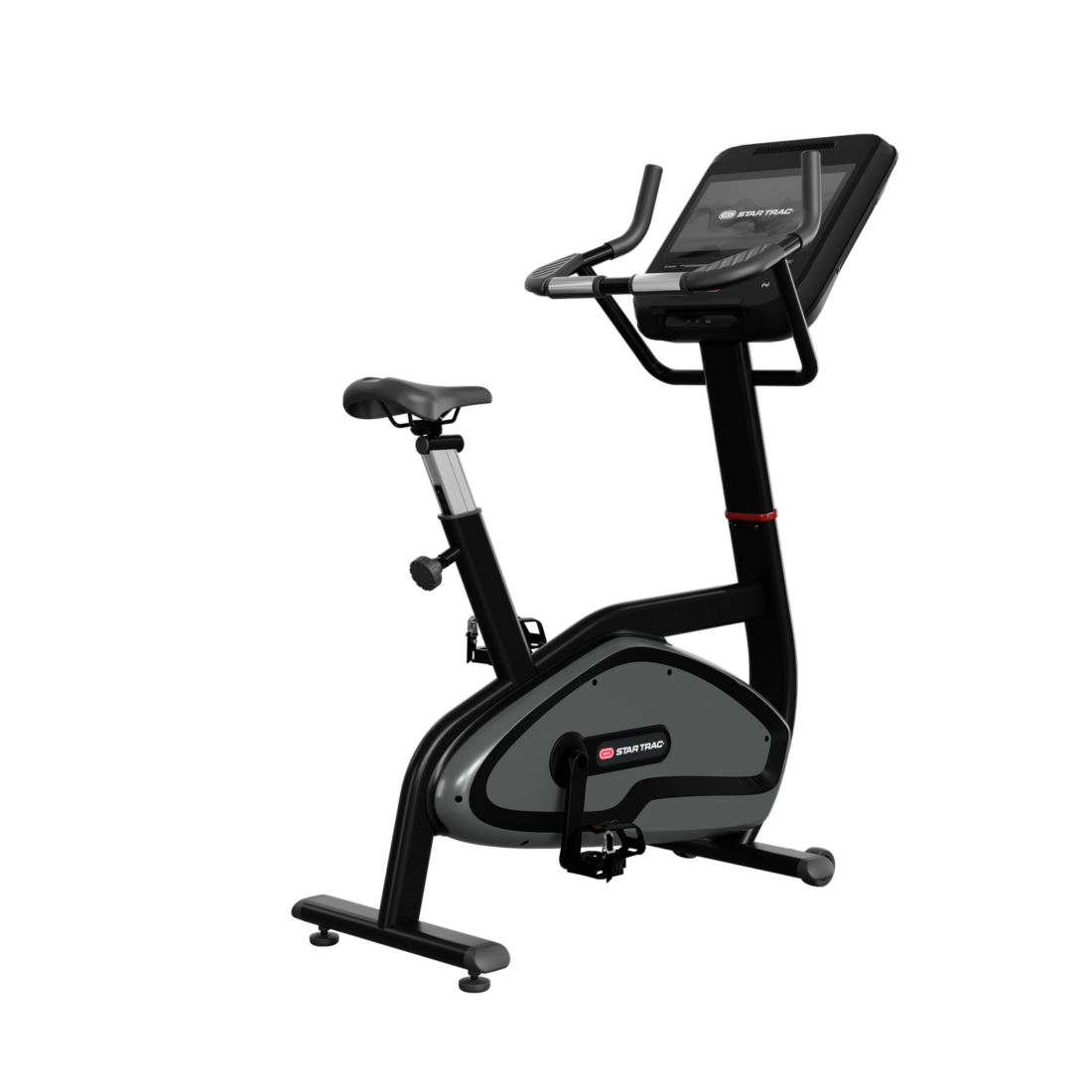

The Star Trac 4 Series Upright Bike combines intuitive design with reliable performance for an accessible cycling experience. Its ergonomic seat positioning and easy step-through frame invite riders of all levels, while the compact footprint makes it a perfect fit for smaller spaces.

Designed with hospitality and multi-housing environments in mind, this configuration ships with the 15″ OpenHub capacitive touchscreen and integrated ATSC TV tuner, adding HIIT20 programming, RunTV scenic routes, integrated apps, and wireless screen mirroring.

Key Features

• 15″ OpenHub capacitive touchscreen with integrated ATSC TV tuner
• HIIT20 programming, 20+ workouts, RunTV scenic routes, and integrated apps
• Apple GymKit and Samsung Galaxy Watch Tap-to-Pair; wireless screen mirroring and casting
• Integrated USB-A and USB-C ports; HDMI personal device screen input
• Easy step-through frame with commercial-grade pedals and adjustable straps
• Pop-pin seat adjustment with elbow pads; telemetry and contact heart rate

Specifications

• Console: 15″ OpenHub Touchscreen with ATSC tuner (Apex G2)
• Connectivity: Ethernet and WiFi enabled; integrated apps; wireless mirroring and casting; over-the-air updates
• Bottom Bracket: ISIS
• Pedals: Commercial-grade pedals with adjustable straps
• Seat Adjustment: Pop pin with elbow pads
• Heart Rate: Telemetry and contact
• Drive System: Alternator
• Max User Weight: 450 lbs (204 kg)
• Frame: Powder-coated steel, 60 Black
• Dimensions: 46″ L x 23″ W x 57″ H (117 x 58 x 145 cm)
• Product Weight: 132 lbs (60 kg)
• Shipping Dimensions: 48″ x 23″ x 34″ (121 x 58 x 86 cm)
• Shipping Weight: 152 lbs (69 kg)
• Power: Touchscreen and PVS options require 12V / 5A power supply
• Model / SKU: 9-3180-4UB-15-ATSC-60BLK

Download the Star Trac 4UB Upright Bike product sheet (PDF)
