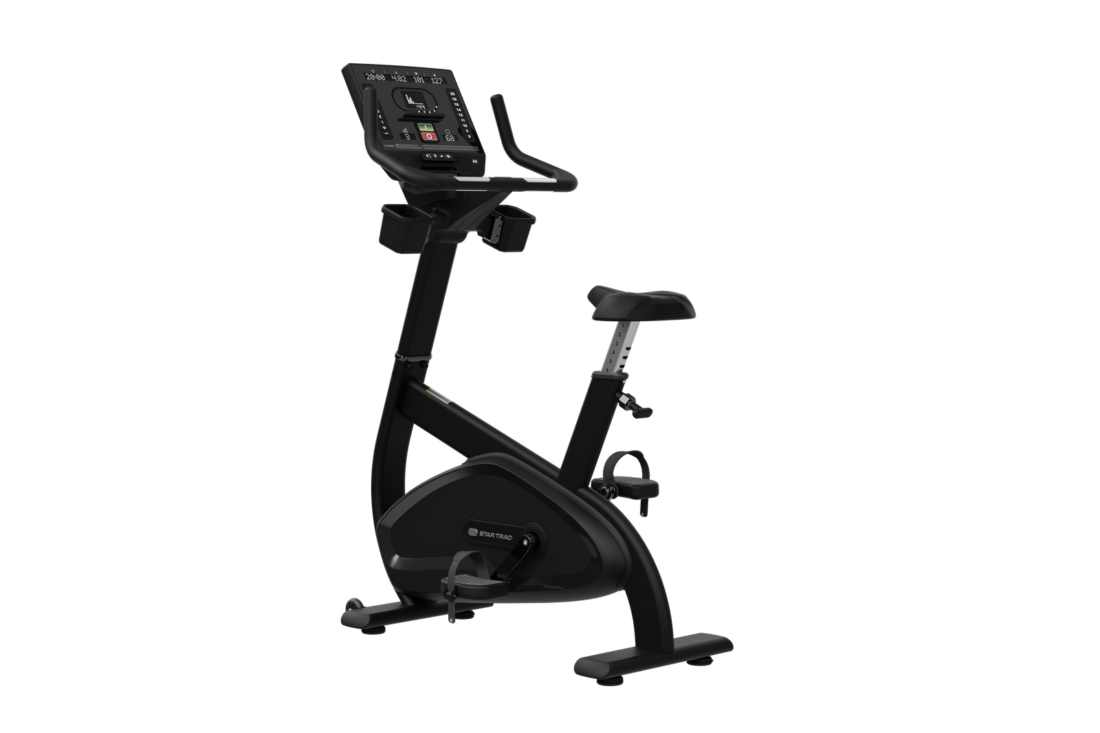

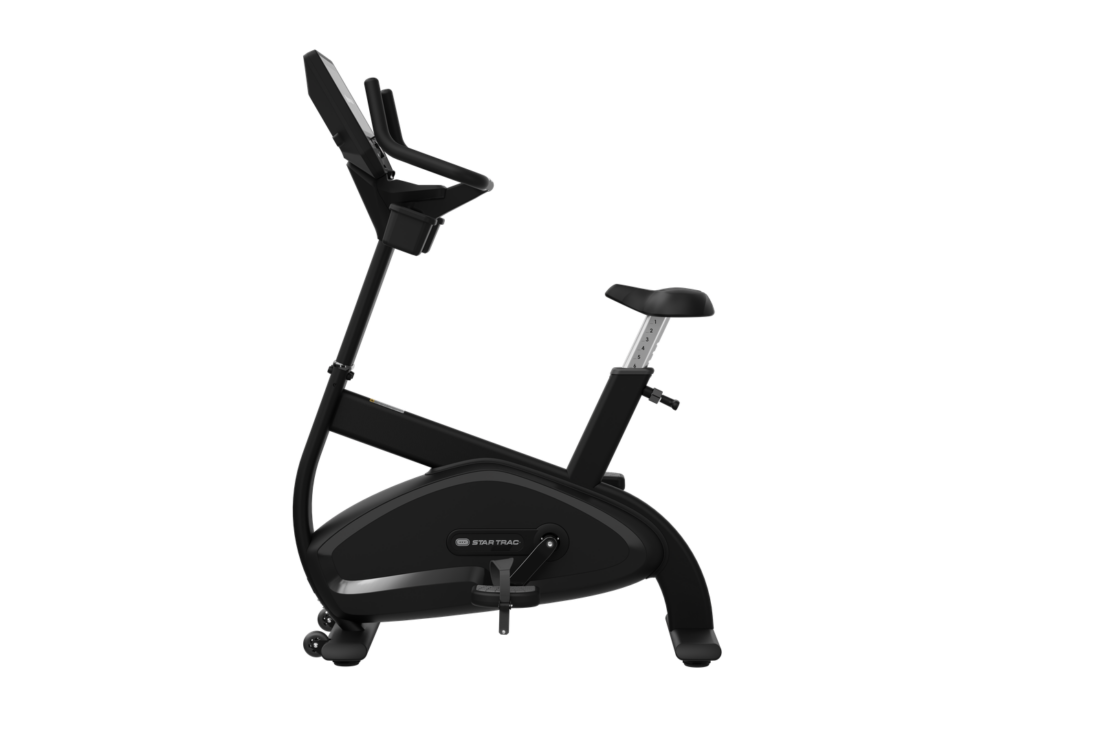

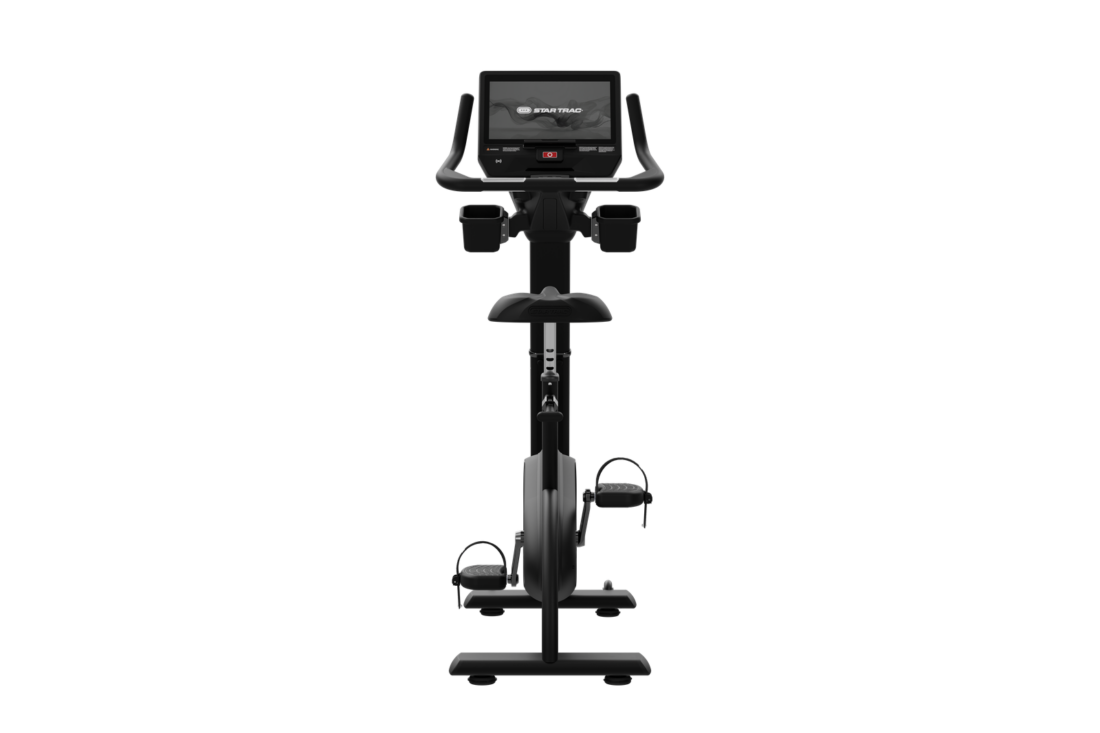

The Star Trac 8 Series Upright Bike is engineered for long-lasting performance in high-traffic fitness facilities. Featuring the ultra-durable Morse Taper bottom bracket and pedal system, it delivers the stability and reliability commercial operators depend on day after day.

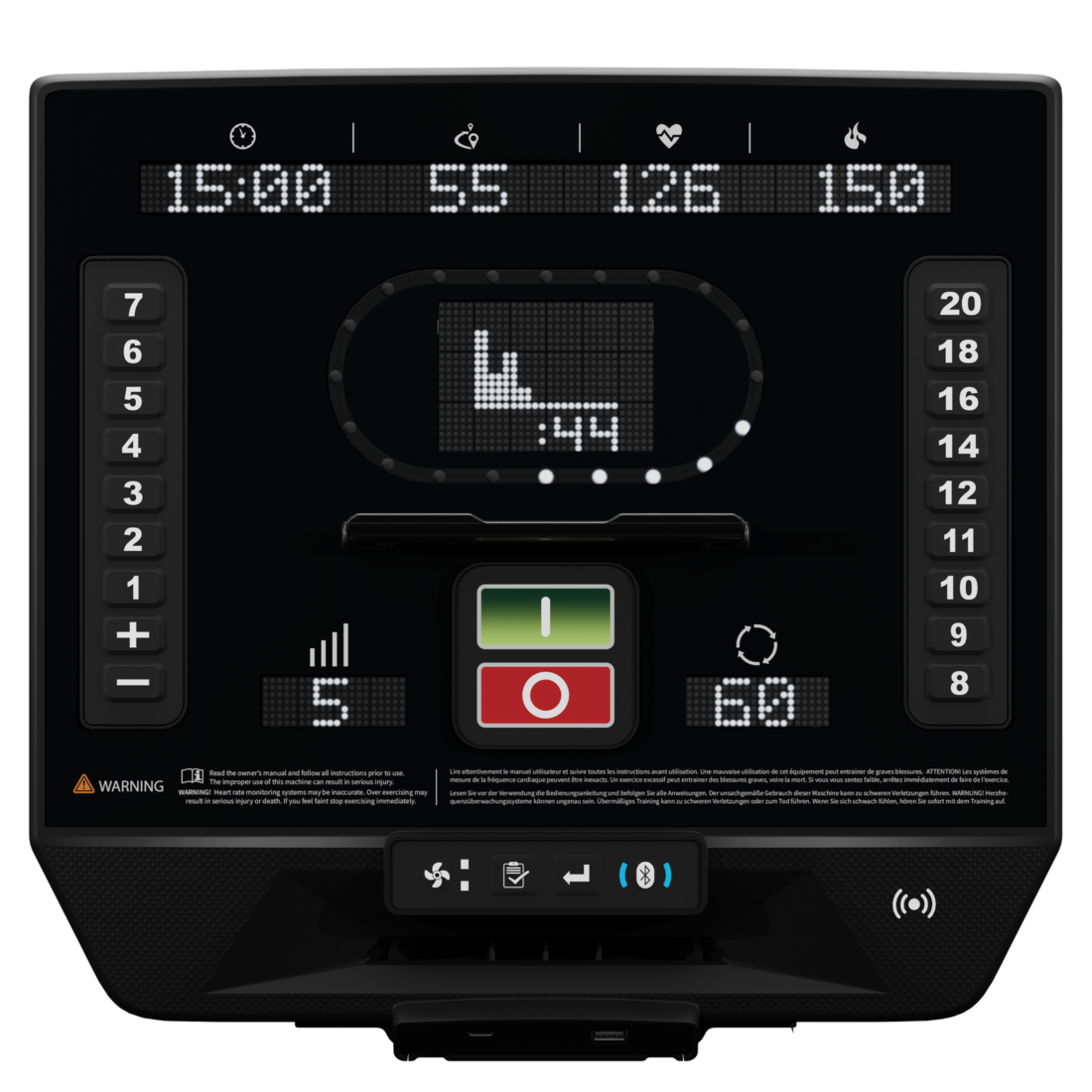

This configuration ships with the self-generating Apex LED display, offering 14+ preset workouts, customizable quick keys, and a programmable auto-start cooling fan — an efficient, low-maintenance cardio solution that needs no external power for the console.

Key Features

• Self-generating Apex LED display with 14+ preset workouts including Fitness Tests, CPAT, and HR/Watts training
• WiFi enabled with over-the-air updates
• Programmable auto-start cooling fan and customizable quick keys
• Ultra-durable Morse Taper bottom bracket and pedal system
• Easy-up ratcheting seat with 13 positions; contact & telemetric heart rate
• Command center: wireless phone charger, USB port, and bottle holders

Specifications

• Console: Apex LED Display (self-generating)
• Connectivity: WiFi enabled; over-the-air updates
• Bottom Bracket: Morse Taper
• Pedals: One-sided self-leveling platform with removable ratcheting strap
• Seat Adjustment: Easy-up ratcheting seat, 13 positions
• Heart Rate: Contact and telemetric
• Drive System: Alternator
• Resistance Levels: 20
• Max User Weight: 350 lbs (159 kg)
• Frame: Powder-coated steel, Matte Black (-60); custom frame colors available
• Assembled Dimensions: 46″ x 25″ x 63″ (117 x 64 x 160 cm)
• Product Weight: 150.8 lbs (68.5 kg)
• Shipping Dimensions: 47.6″ x 26″ x 42.3″ (121 x 66.1 x 107.5 cm)
• Shipping Weight: 172.8 lbs (78.4 kg)
• Power: Self-generating LED display (no external power required)
• Model / SKU: 9-8160-8UB-LED-60

Download the Star Trac 8UB Upright Bike product sheet (PDF)
